BRA-01SR 8.5dBic UHF RFID antenna far field application for Warehouse logistics airport
Product Function and Features
Electrical Properties: It is a general antenna for UHF RFID applications with high gain , low VSWR, broad axial ratio and etc.
Mechanical Properties: circular polarized UHF RFID antenna can be widely used, side feed design, pleasing appearance with small size, sophisticated technique and easy to install.
Product advantage: low profile, excellent VSWR and axial ratio parameter, anti-UV aging and high protection class.
Product Applications
BRA-01SR Antenna is of convenient application in middle-distance parking management system, archives management, logistic management, asset management, storage management, personnel management and other IoT fields. Applications: warehouse, logistics distribution center, airport, hospital, logistics terminal, goods transfer belt, file cabinet and etc.
Performance Specifications
| Frequency Range | 860MHz～960MHz |
| VSWR | ≤1.3:1 |
| Gain | > 8.5 dBic |
| H side HPBW | 70° |
| E side HPBW | 70° |
| Polarization | Circular Polarization |
| Axial ratio | ＜3 dB |
| Front-to-Back Ratio | ≥ 15dB |
| Impedance | 50±1Ω |
| Connector Type | RP-TNC Female |
| Connector Position | Side |
Mechanical Specifications
| Size | 258mm×258mm×36mm |
| Weight | 0.8kg |
| Material | Engineering plastics ASA, aluminum |
| Color | Milk-white |
| Production Class | IP65 |
| Operating Temperature | -40℃~+ 85℃ |
| Storage Temperature | -40℃~+ 85℃ |

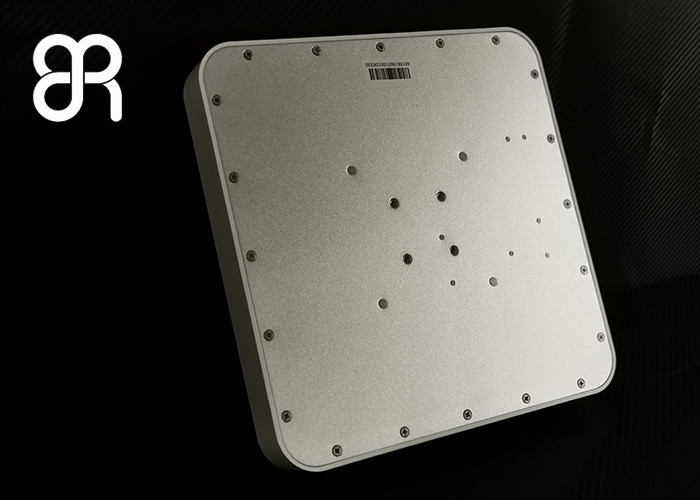

Figure 1. Antenna Photo
Mounting
BRA-01SR Antenna can be mounted on any steel frame or column with 3M adhesive or customized bracket and be connected with reader through coaxial cable. It can be installed easily according to the bracket's position. The antenna tilt can be adjusted according to the actual applications.
Antenna bracket is not original accessory.
Figure 2. Mounting Dimensions
FAQ and Cautions
BRA-01SR Antenna is broadband, circularly polarized and directional antenna. Attention should be paid to adjusting the antenna tilt to obtain the optimal reading performance.
BRA-01SR Antenna can be used outdoors, but not suitable for use in acid or alkali environment.
