BRA-02 860-960MHz 6dBic UHF RFID antenna with small size, double waterproof design IP67
Product Function and Features
1)Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.
2)Mechanical Properties: pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.
3)BRA-02 Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.
Performance Specifications
| Frequency Range | 860MHz～960MHz |
| VSWR | ≤1.3:1 |
| Gain | > 6 dBic |
| H side HPBW | 90° |
| E side HPBW | 90° |
| Polarization | Circular Polarization |
| Relative humidity | 5%～95% |
| Impedance | 50±1Ω |
| Connector Type | SMA-50KFD Female |
Mechanical Specifications
| Size | 128mm×128mm×20mm |
| Weight | 0.3kg (bracket excluded) |
| Material | Engineering plastics ASA, aluminum |
| Color | Milk-white |
| Production Class | IP67 |
| Operating Temperature | -40℃~+ 85℃ |
| Storage Temperature | -40℃~+ 85℃ |

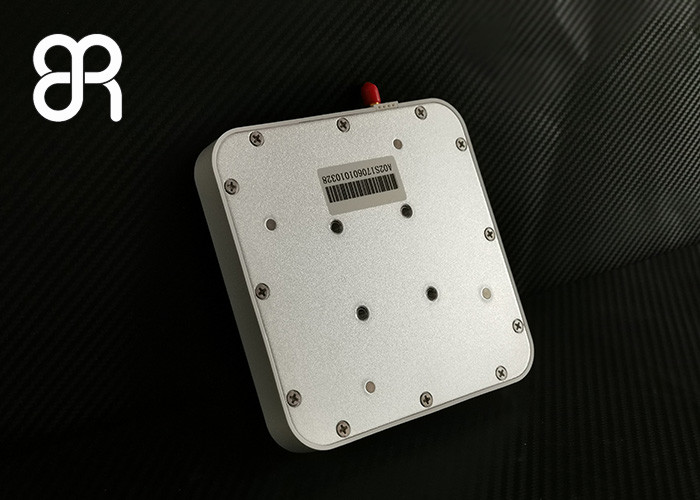

Figure 1. Antenna Photo
FAQ and Cautions
BRA-02 Antenna is circularly polarized directional antenna. Attention should be paid to adjusting the antenna tilt to obtain the optimal reading performance.
BRA-02 Antenna can be used outdoors, but not suitable for use in acid or alkali environment.

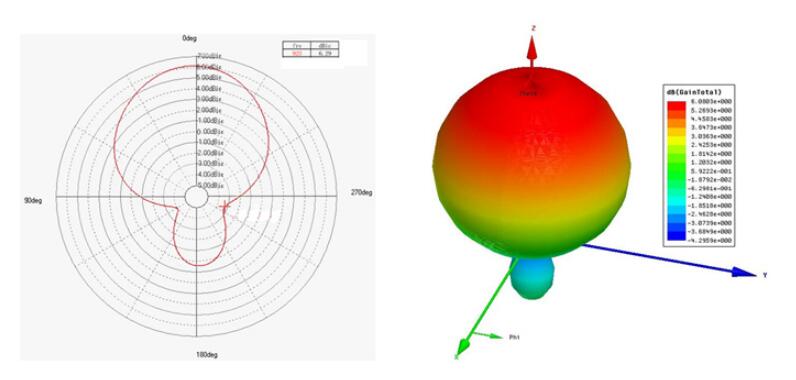

Antenna pattern
Shenzhen Broadradio RFID Technology Co., Ltd. (referred to as "Broadradio"), established in 2014, is specialized in RFID antennas, electronic tags, rfid access control, rfid handsets, rfid readers, rfid file cabinets, etc. Double high-tech enterprises in product development, production and sales (national high-tech enterprises, Shenzhen high-tech enterprises). The team has excellent independent innovation capabilities. At present, it has more than 20 project testing equipment and more than 100 RF testers. At the same time, the company's RFID products have obtained a number of patents issued by the state, a number of PCT international patents, and domestic invention patents.
