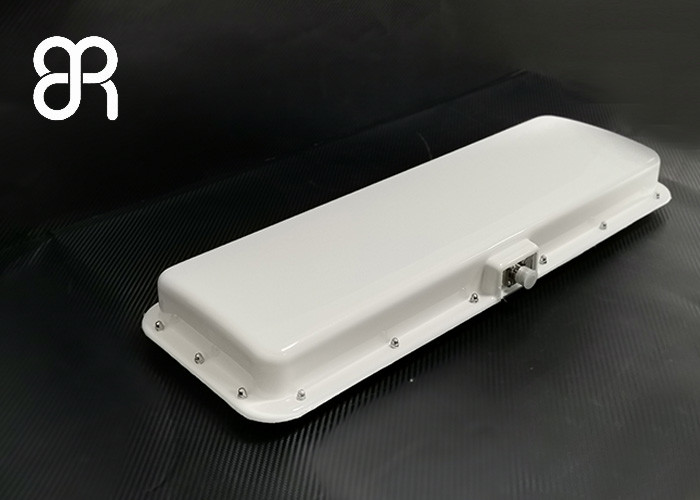

Gain 12dBi Narrow Beam RFID Antenna Linear Polarization Connector Type N Female

Name: Gain 12dBi Narrow Beam RFID Antenna Linear Polarization Connector Type N Female
Brand: broadradio
Price: 1 USD

Buy cheap Gain 12dBi Narrow Beam RFID Antenna Linear Polarization Connector Type N Female product

Brand Name : broadradio

Model Number : BRA-44

Place of Origin : China Shenzhen

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, PayPal

Delivery Time : 5-10 work days

Packaging Details : Standard Export Carton, Foam and Protective Film

name : Narrow Beam Antenna，Linear Polarization Antenna

Size : 586mm×206mm×57mm

Weight : 1.61kg

Material : ABS+ aluminum parts

Color : white

Production Class : IP65

Operating Temperature : -40℃~+ 85℃

Contact Now

BRA-44 Gain 12 dBi Narrow Beam RFID Antenna,Linear Polarization Connector Type N Female

The main test capabilities

Antenna gain

Antenna directivity

Beamwidth

Antenna efficiency

Radiated power

Label sensitivity

Label performance

Product Features

1. The antenna has high gain and narrow beam characteristics, and is a general antenna for UHF RFID applications.
2. The antenna has a reading distance of 15-20 meters
3, the antenna is suitable for long-distance applications, using linear polarization design
4. The antenna has superior mechanical properties, waterproof rating up to IP65, and the housing is reinforced for a variety of harsh environments.
5. BRA-44 antenna can be conveniently applied to UHF band vehicle management, asset management and other applications.

Gain 12dBi Narrow Beam RFID Antenna Linear Polarization Connector Type N Female

Performance Specifications

Frequency Range	902MHz～928MHz
VSWR	≤1.3:1
Gain	12 dBic
H side HPBW	40°
E side HPBW	90°
Polarization	Linear Polarization
Relative humidity	5%～95%
Impedance	50±1Ω
Connector Type	N Female

Broadradio specializes in R&D, production and sales of RFID tags and RFID antennas, and is a national high-tech enterprise. With excellent independent innovation ability and professional technical team, it has obtained a number of national patents and PCT international patents. With more than 10 years of RFID project experience, you are familiar with how to choose antennas, tags and readers for optimal system integration. It is your ideal partner.
