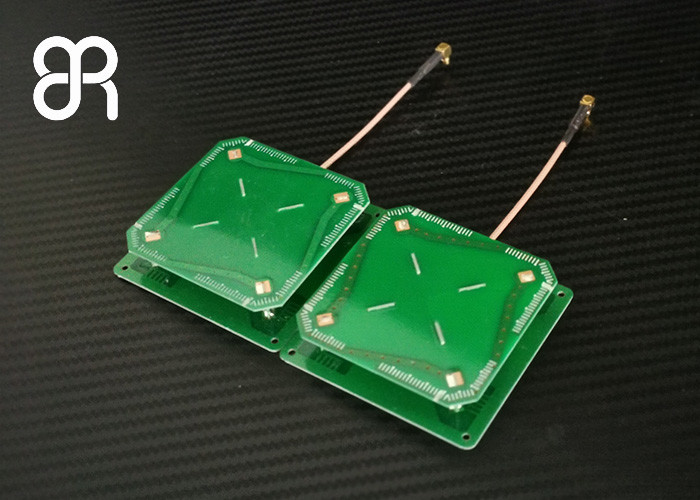

BRA-20 Handheld RFID Reader Antenna 4dBic Circular Polarization F4BM Material size 60×60mm
Provide custom design services
Broadradio provides customers with customized RFID antennas and labels and other hardware products, providing customized design services for enterprises, schools and research institutes.
Product Features
1,Electrical performance: The general-purpose antenna suitable for UHF band RFID terminals has high gain, miniaturization and low standing wave.
2,Mechanical properties: small size, light weight, suitable for terminal equipment such as handheld devices.
3,The BRA-20 antenna can be conveniently applied to terminal applications such as UHF band RFID handsets.
Industry application case
1) Foxconn for Apple Project Asset Management
2) Oil Drilling Materials Asset Warehouse
3) Some unmanned self-service store
4) A library intelligent optimization solution
5) A brand apparel retail storage management plan
Performance Specifications
| Frequency Range | 902MHz-928MHz(865MHz～868MHz) |
| VSWR | ≤1.3:1 |
| Gain | ≥ 4 dBic |
| Radiation angle | horizontal 120° × vertical 120° |
| Axial ratio | ＜3dB |
| Polarization | Circular polarization |
| Relative humidity | 5%～95% |
| Impedance | 50±1Ω |
| Connector Type | MMCX (SMA optional) |
Broadradio implements the global business strategy, strengthens the development of the international market, increases interaction with customers and suppliers, responds to customer needs quickly and comprehensively, and establishes a more stable long-term partnership. At the same time, Broadradio implements forward-looking and characteristic solutions based on local conditions, and promotes Broadcom's intelligent products and services to be widely used in all walks of life, providing global users and partners with an overall RFID that keeps pace with the times. )solution.
