6dBic Narrow Beam Antenna is UHF RFID far-field antenna with broad axial ratio
Broadradio specializes in RFID, production and sales of RFID tags and RFID antennas, and is a national high-tech enterprise. With excellent independent innovation ability and professional technical team, it has obtained a number of national patents and PCT international patents. With more than 10 years of RFID project experience, you are familiar with how to choose antennas, tags and readers for optimal system integration. It is your ideal partner.
Product Function and Features
Electrical Properties: It is UHF RFID far-field antenna with broad axial ratio, low VSWR and etc.
Mechanical Properties: pleasing appearance, ultra-thin design, sophisticated techniques, easy to install, it fits all the domestic and foreign model UHF readers and brings the best performance of the reader.
Product Applications
BRA-10 Antenna is of convenient application in retail, conference management, personnel management, RFID sports timing, luggage management, warehousing, logistics, asset management and UHF RFID application fields.
Performance Specifications
| Frequency Range | 902MHz～928MHz |
| VSWR | ≤1.3:1 |
| Gain | 6 dBic |
| H side HPBW | 85° |
| E side HPBW | 85° |
| Polarization | Circular Polarization |
| Relative humidity | 5%～95% |
| Impedance | 50±1Ω |
| Connector Type | SMA-K |
Mechanical Specifications
| Size | 301 mm×301mm×8.5 mm |
| Weight | 0.73g |
| Material | Plastics, aluminum, FR4 |
| Color | Black |
| Production Class | IP54 |
| Operating Temperature | -20℃~+ 55℃ |
| Storage Temperature | -20℃~+ 55℃ |

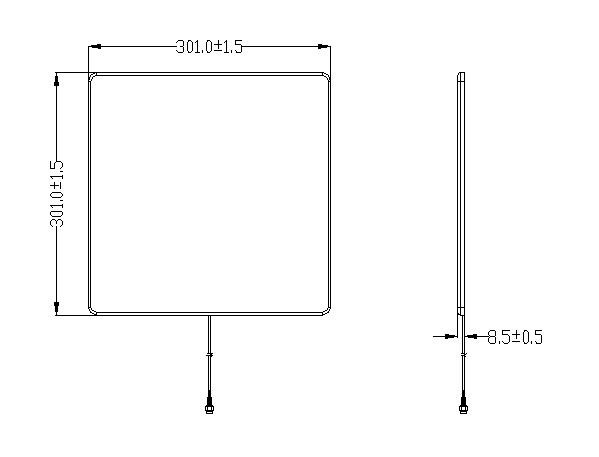

Dimensions

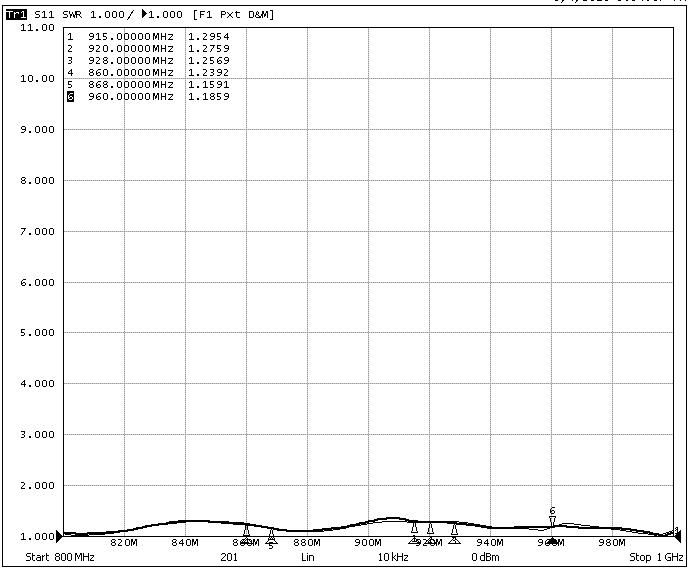

Antenna VSWR testing chart
FAQ and Cautions
BRA-10 Antenna is circularly polarized directional antenna. Attention should be paid to adjusting the antenna tilt to obtain the optimal reading performance.
BRA-10 Antenna can be used outdoors, but not suitable for use in acid or alkali environment.
Product advantages
1) A wide range of products to meet various distance requirements;
2) Independent research and development of products, free technical and after-sales service;
3) Source factory direct sales, the price is 15%-20% lower than other companies;
4) One-stop service for product customization design, testing and production
