BRA-44 High Gain RFID Antenna for Linear Polarization reading distance 15-20 m
Product features
1. The antenna has high gain and narrow beam characteristics, and is a general antenna for UHF RFID applications.
2. The antenna has a reading distance of 15-20 meters
3, the antenna is suitable for long-distance applications, using linear polarization design
4. The antenna has superior mechanical properties, waterproof rating up to IP65, and the housing is reinforced for a variety of harsh environments.
5. BRA-44 antenna can be conveniently applied to UHF band vehicle management, asset management and other applications.
Performance Specifications
| Frequency Range | 902MHz～928MHz |
| VSWR | ≤1.3:1 |
| Gain | 12 dBic |
| H side HPBW | 40° |
| E side HPBW | 90° |
| Polarization | Linear Polarization |
| Relative humidity | 5%～95% |
| Impedance | 50±1Ω |
| Connector Type | N Female |
Mechanical Specifications
| Size | 586mm×206mm×57mm |
| Weight | 1.61kg |
| Material | ABS+ aluminum parts |
| Color | white |
| Production Class | IP65 |
| Operating Temperature | -40℃~+ 85℃ |
| Storage Temperature | -40℃~+ 85℃ |
Figure 1. Antenna Photo
Mounting

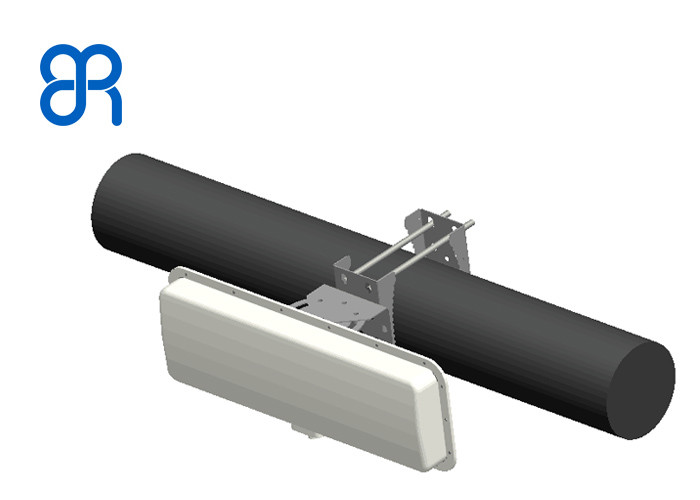

The BRA-44 antenna can be mounted on the steel frame structure or pillar by its own bracket or user-fitted bracket, and connected to the reader through the coaxial cable. The antenna can be installed horizontally or vertically, depending on the mounting orientation of the bracket. After installation, the tilt angle of the antenna can be adjusted according to the actual situation.
The antenna mount is an option and the customer can choose as needed.

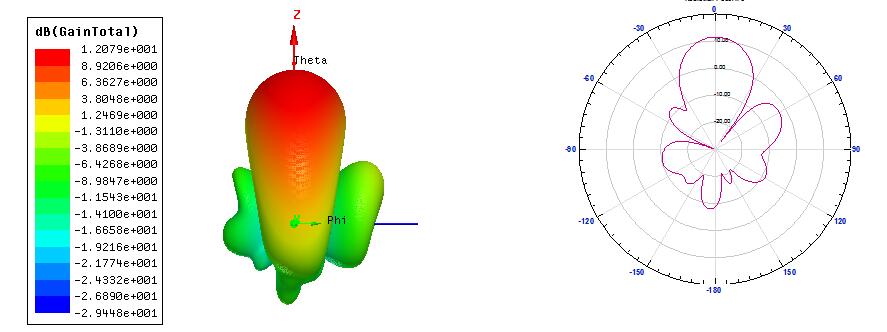

Antenna pattern
