UHF RFID Portal Narrow Beam Antenna / Directional RFID Antenna Size 130×335×17.55MM

Name: UHF RFID Portal Narrow Beam Antenna Directional RFID Antenna Size 1303351755MM
Brand: broadradio
Price: 1 USD

Brand Name : broadradio

Model Number : BRA-08

Place of Origin : China Shenzhen

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Paypal

Delivery Time : 5-8work days

Packaging Details : Standard Export Carton and Protective Film

Frequency : 902-928MHz

Size : 130mm×335mm×17.55mm

Gain : 8dBic

Polarization : Circular Polarization

Weight : 0.75kg

name : Narrow Beam Antenna

Color : silvery white

email : cliff.lee@broadradio.com.cn

Contact Now

UHF RFID Portal Antenna Narrow Beam Antenna RFID Directional Antenna

Broadradio is a high-tech enterprise (national high-tech enterprise, Shenzhen high-tech enterprise) specializing in RFID, production and sales of RFID hardware products, including UHF RFID antenna, RFID electronic tag, RFID access control, rfid handset, Rfid reader, rfid smart file cabinet, RF cable, etc. With excellent independent innovation ability and professional technical team, it has obtained more than 100 national patents and PCT international patents.

Product Applications

BRA-08 Antenna is of convenient application in UHF RFID access control, personnel management, asset management and other application fields.

Product Function and Features

Electrical Properties: It is a general antenna for terminal applications with directional feature, narrow beam, high gain, miniaturization and etc.

Mechanical Properties: small size and suitable for various access control, vehicle management and etc.

Performance Specifications

Frequency Range	902MHz～928MHz
VSWR	≤1.3:1
Gain	> 6 dBic
Axial ratio	<3 dB
Polarization	Circular Polarization
Relative humidity	5%～95%
Impedance	50±1Ω
Connector Type	SMA-50KFD Female

Mechanical Specifications

Size	130mm×335mm×17.55mm
Weight	0.75kg
Material	RF-4, stainless steel
Color	silvery white
Production Class	Indoor use
Operating Temperature	-40℃~+ 85℃
Storage Temperature	-40℃~+ 85℃

UHF RFID Portal Narrow Beam Antenna / Directional RFID Antenna Size 130×335×17.55MM

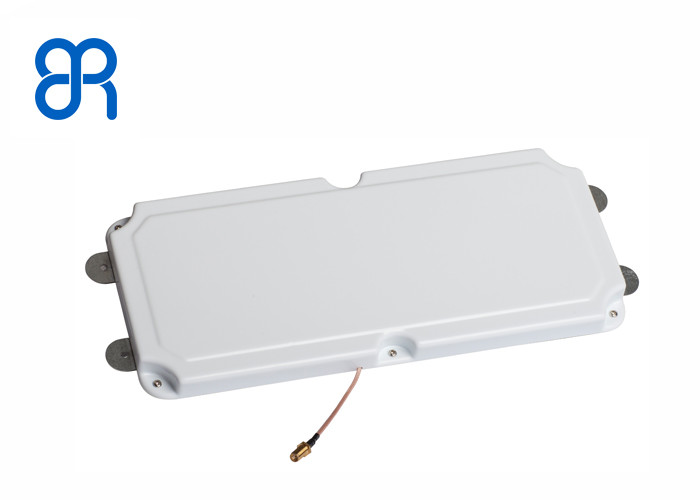

Figure 1. Antenna Photo

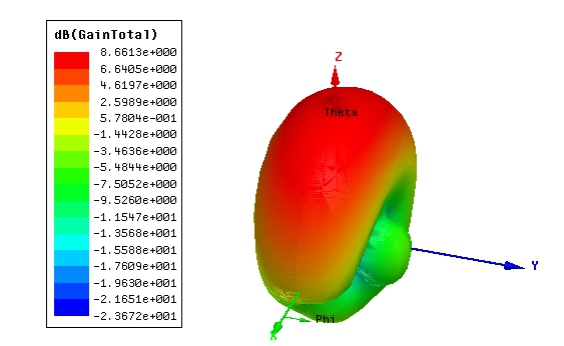

Antanna Pattern

UHF RFID Portal Narrow Beam Antenna / Directional RFID Antenna Size 130×335×17.55MM
