BRT-37 High Sensitivity -12dBm RFID Hard Tag,Reference Distance 3M Impinj Monza R6-P Chip
The new retail antenna RFID is a non-contact intelligent and automatic identification technology. It mainly transmits, receives, and processes radio frequency signals to identify target objects so as to obtain and process data, achieving intelligent and automated processing.
product feature
1, BRT-37 PCB anti-metal label independent research and development design, designed for complex environments such as metal
2, It has the characteristics of long reading distance, high sensitivity, small size and convenient installation.
3, can be easily applied to metal asset equipment management, gun management, medical equipment management and other occasions.
4, the tag is better in the metal environment.
| Performance Features |
| Frequency range: | 920 - 925 MHz |
| Sensitivity: | -12dBm (reference distance 3M) |
| Chip: | Impinj Monza R6-P |
| Chip protocol | EPC Class-1 Gen2 |
| Protocol supported: | ISO 18000-6C, EPC global C1Gen2 |
| Function: | Read / Write |
| Chip Features |
| E P C : | 128-EPC |
| T I D: | 48 bits |
| Access password: | 32 bits |
| Kill password: | 32 bits |
| Data retention: | 10 years |
| Write endurance: | 100,000 cycle |
| Mechanical Features |
| Size: | 25mm x 25mmx3.6mm |
| Material of shell: | PCB, 3M adhesive |
| Color: | Black |
| Weight: | 3g |
| Installation method : | 3M adhesive |
| Operating Temperature : | -20℃ to +85℃ |
| Applications |
| Metal asset equipment management, medical device management, tool management, etc. |
Shenzhen Broadradio RFID Technology Co., Ltd. (referred to as “Broadradio”) is a high-tech enterprise (national high-tech enterprise, Shenzhen high-tech enterprise) specializing in R&D, production and sales of RFID hardware products, including UHF RFID antenna, rfid electronic tag, rfid access control, rfid smart file cabinet, rfid handset, RF cable, etc. Based on the strategic thinking of “demand-driven application, application-driven products”, Broadradio integrates technology innovation into RFID products for the first time, with the concept of “IoT, Innovation” and supported by professional team and project design experience. Provide customers with an overall RFID (field) solution.
Partner
- HUAWEI
- Alien
- Impinj
- Invengo
- Foxconn
|
|

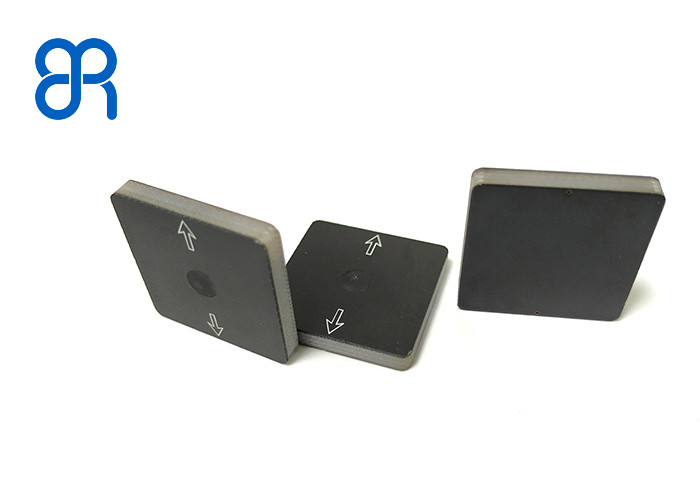

High Sensitivity -12dBm RFID Hard Tag,Reference Distance 3M Impinj Monza R6-P Chip Images
|
