BRA-01SR 860MHz～960MHz UHF RFID Antenna,8.5 dBic Gain Circular Polarization Antenna
Broadradio has excellent independent innovation ability and professional technical team. The main RFID members are designers or main bearers of Wal-Mart project series labels, Wuliangye fragile security labels, UHF book labels, and national standard vehicle electronic labels. At present, Broadradio has obtained a number of national patents and PCT international patents.
Product Function and Features
1) The antenna is used for far field applications in the UHF band
2) Side feed design, easy to install
3) Connector type is TNC external thread inner needle
4) Double waterproof design with waterproof ring and silicone, protection grade IP65
Suitable for warehouses, warehouses, logistics distribution centers, airports, hospitals, logistics and transportation terminals, goods conveyors, file filing cabinets, etc.
Performance Specifications
| Frequency Range | 860MHz～960MHz |
| VSWR | ≤1.3:1 |
| Gain | > 8.5 dBic |
| H side HPBW | 70° |
| E side HPBW | 70° |
| Polarization | Circular Polarization |
| Axial ratio | ＜3 dB |
| Front-to-Back Ratio | ≥ 15dB |
| Impedance | 50±1Ω |
| Connector Type | RP-TNC Female |
| Connector Position | Side |
Mechanical Specifications
| Size | 258mm×258mm×36mm |
| Weight | 0.8kg |
| Material | Engineering plastics ASA, aluminum |
| Color | Milk-white |
| Production Class | IP65 |
| Operating Temperature | -40℃~+ 85℃ |
| Storage Temperature | -40℃~+ 85℃ |
Industry application case
1) Foxconn for Apple Project Asset Management
2) Oil Drilling Materials Asset Warehouse
3) Some unmanned self-service store
4) A library intelligent optimization solution
5) A brand apparel retail storage management plan
installation

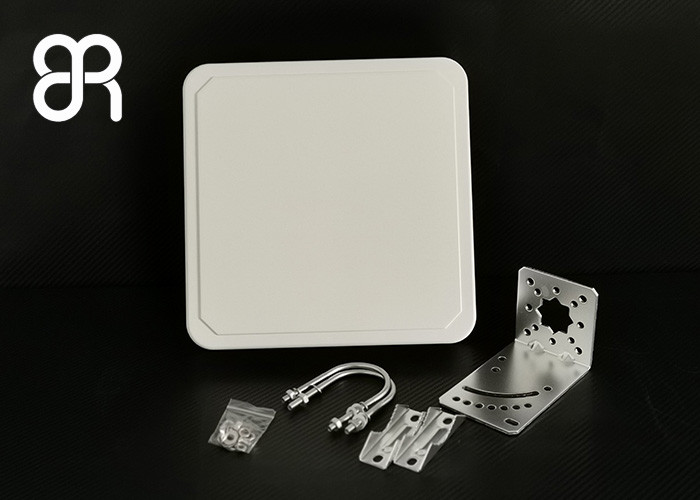

The BRA-01SR antenna can be mounted on the steel frame structure or pillar by its own bracket or user-fitted bracket, and connected to the reader through the coaxial cable. The antenna can be installed horizontally or vertically, depending on the mounting orientation of the bracket. After installation, the tilt angle of the antenna can be adjusted according to the actual situation.
The antenna mount is an option and the customer can choose as needed.
