BRT-33 920 - 925 MHz Alien H3 Chip RFID Hard Tag -8dBm (Metal surface) high Sensitivity
RFID team
1) 12 years focused on RFID antenna RFID engineers
2) Complete RFID and test equipment
3) Darkroom, network analyzer, label tester, comprehensive tester, etc.
4) Rich application and project experience
5) I have worked on RFID systems for various application types, and are familiar with how to select antennas, tags and readers for optimal system integration.
product description
The high temperature tag/label BRT-33 designed and produced by Broadradio is a label specially designed for complex and high temperature environments such as metal. It has the characteristics of long reading distance, high sensitivity and convenient installation. It is suitable for various metal environments, especially high temperature environment. Conveniently used in a variety of metals, high temperature and other occasions.
| Performance Features |
| Frequency range: | 920 - 925 MHz |
| Sensitivity: | -8dBm (Metal surface) |
| Chip: | Alien H3 |
| Protocol supported: | ISO 18000-6C, EPC global C1Gen2 |
| Function: | Read / Write |
| Chip Features |
| E P C : | 96 bits-EPC (can be extended to 496bits) |
| Chip memory | 512 bits User |
| T I D: | 64 bits |
| Access password: | 32 bits |
| Kill password: | 32 bits |
| Data retention: | 10 years |
| Write endurance: | 100,000 cycle |
| Applications |
| Suitable for a variety of metal environments, especially high temperature environments, can be easily applied to a variety of metals, high temperature and other occasions |
Provide custom design services
Broadradio provides customers with customized RFID antennas and labels and other hardware products, providing customized design services for enterprises, schools and research institutes.
Shenzhen Broadradio RFID Technology Co., Ltd. (referred to as "Broadradio"), established in 2014, is specialized in RFID antennas, electronic tags, rfid access control, rfid handsets, rfid readers, rfid file cabinets, etc. Double high-tech enterprises in product development, production and sales (national high-tech enterprises, Shenzhen high-tech enterprises). The team has excellent independent innovation capabilities. At present, it has more than 20 project testing equipment and more than 100 RF testers. At the same time, the company's RFID products have obtained a number of patents issued by the state, a number of PCT international patents, and domestic invention patents.
Product Tags:
|
|

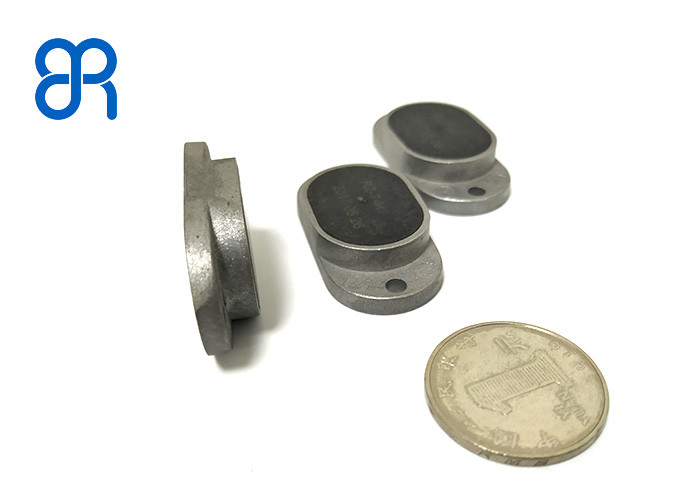

Metal Surface 920-925 MHz Alien H3 RFID Hard Tag Images
|
